PV Photovoltaic Grid Connected Cabinet Anti Reverse Current Control Cabinet

Model Number : JN 1199811549

Certification : ISO9001，CE

Place of Origin : China

MOQ : 2

Payment Terms : T/T,Western Union

Delivery Time : 15 days

Packaging Details : wooden case packaging

Price : USD28-68889

Usage : Electrical Cabinet，PV Control panel

Thickness : 1.5mm or more

Accessories : Hinges, Handles, Screws

Type : Cabinet

Features : Durable, Waterproof, Fireproof

Material : Metal

Structure : Single Door/ 2 doors/more

Shape : Rectangular

Installation : Wall Mounted，free standing

Surface Treatment : Powder Coating

Lock Type : Key Lock

Size : Customizable

Color : Grey or others

Contact Now

PV Anti-reverse Current Control Cabinet Anti-islanding Protection

Product Attributes

Attribute	Value
Usage	Electrical Cabinet, PV Control panel
Thickness	1.5mm or more
Accessories	Hinges, Handles, Screws
Type	Cabinet
Features	Durable, Waterproof, Fireproof
Material	Metal
Structure	Single Door/2 doors/more
Shape	Rectangular
Installation	Wall Mounted, free standing
Surface Treatment	Powder Coating
Lock Type	Key Lock
Size	Customizable
Color	Grey or others

Product Description

This PV Anti-reverse Current Control Cabinet provides essential anti-islanding protection for various photovoltaic systems, ensuring safety and optimal power management.

Key Applications

Distributed PV systems (residential/commercial rooftops): Prevents excess PV power from flowing back to the grid and stops PV system operation during grid outages to ensure maintenance safety.
Microgrids and off-grid systems: Prevents islanded operation in weak grid environments, ensuring stable power supply and preventing battery over-discharge.
Grid-connected PV + energy storage projects: Controls surplus power storage and enables quick grid disconnection during failures.
PV carports and BIPV systems: Restricts reverse power transmission and prevents islanded power supply to building circuits.

Specifications

Application Scenario	Typical Dimensions (W×H×D mm)	Capacity Range
Small Commercial Rooftop	600×800×300	≤250kW
Standard Ground Power Plant	800×1200×400	250kW-1MW
1500V High-Voltage System	1000×1500×500	1MW-2MW

Customization Options:

Total DC input capacity
Number of protection devices
Ambient temperature range
Cable entry requirements

Material Options

Stainless steel, carbon steel

IP Rating

IP54/IP55/IP65/IP66/IP67

Customization Recommendations

Key Customization Points

Capacity: Add +200mm width per 12 additional PV strings. For 1500V systems, increase depth by 100mm per 1MW.
Climate Adaptations:
- Desert: Anti-sand mesh (+100mm height)
- Coastal: Stainless steel enclosure (+5% size)
- Arctic: Double insulation (+150mm depth)

Smart Features (Optional)

Monitoring: +50mm height per IV curve scanner
Safety: +100mm width for every 4 AFCI modules

Cost-Saving Tips:

Use standard cable entry points (reduces custom machining)
Opt for modular designs (easy future upgrades)

Critical Reminders:

Max shipping width: 2500mm (oversized requires split design)
Wall-mounted limit: ≤80kg (else use floor-standing)

Product Tags:

PV anti reverse current control cabinet

Photovoltaic Grid Connected Cabinet Anti Reverse

PV Current Control Cabinet

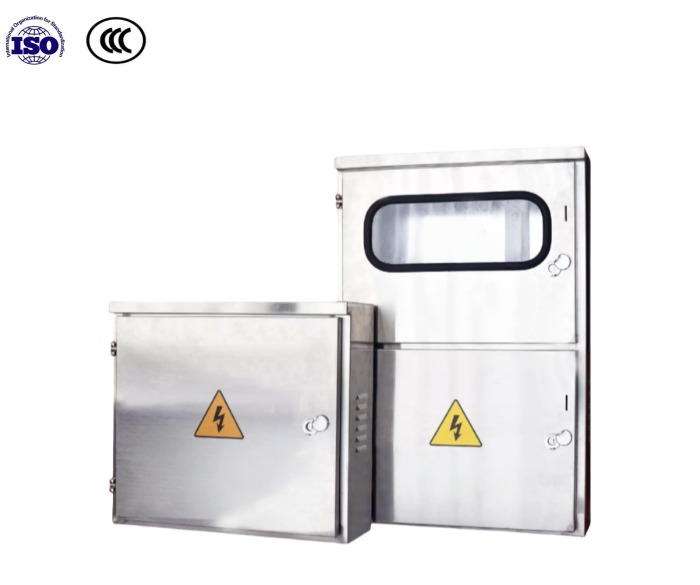

PV Photovoltaic Grid Connected Cabinet Anti Reverse Current Control Cabinet Images
