Photovoltaic Power Station Low Voltage Switchgear Cabinet For Solar Energy Storage

Certification : ISO9001，CE

Place of Origin : China

MOQ : 2

Payment Terms : T/T,Western Union

Delivery Time : 15 days

Packaging Details : wooden case packaging

Price : USD28-68889

Usage : Electrical Cabinet，PV Control panel

Thickness : 1.5mm or more

Accessories : Hinges, Handles, Screws

Type : Cabinet

Features : Durable, Waterproof, Fireproof

Material : Metal

Structure : Single Door/ 2 doors/more

Shape : Rectangular

Installation : Wall Mounted，free standing

Surface Treatment : Powder Coating

Lock Type : Key Lock

Size : Customizable

Color : Grey or others

Contact Now

Photovoltaic Power Station Low Voltage Switchgear Solar Energy Storage

Product Attributes

Attribute	Value
Usage	Electrical Cabinet, PV Control panel
Thickness	1.5mm or more
Accessories	Hinges, Handles, Screws
Type	Cabinet
Features	Durable, Waterproof, Fireproof
Material	Metal
Structure	Single Door/2 doors/more
Shape	Rectangular
Installation	Wall Mounted, free standing
Surface Treatment	Powder Coating
Lock Type	Key Lock
Size	Customizable
Color	Grey or others

Product Description

Photovoltaic Power Station Low Voltage Switchgear Solar Energy Storage

Applications & Features

Application Category	Specific Use Case	Key Features & Capabilities	Technical Specifications
Distributed PV Systems	Rooftop PV Plants	Grid connection management Anti-backfeed/islanding protection Bidirectional metering	Capacity: 10kW-1MW
PV Carports & BIPV	Handles irregular power generation		Compatible with building-integrated designs
Utility-Scale Solar Farms	Array-Level Control	Local reactive power compensation (SVG) Voltage regulation	1500V DC input, IEEE 1547 compliant
Skid-Mounted Substations	Pre-integrated with transformers/switchgear		Plug-and-play deployment
PV + Storage Systems	DC-Coupled Systems	PV-battery coordination Minimizes conversion losses	Example: Tesla Powerpack integration
VPP Participation	Demand response (peak shaving)		IEC 61850 communication protocol
Harsh Environments	Offshore Floating PV	Corrosion-proof (IP66) Built-in dehumidification	Saltwater-resistant materials
High-Altitude Plants	Pressure-balanced design	Insulation stability	Tested for 5000m altitude (Tibet/Andes)

Specifications

Configuration	Dimensions (W×H×D mm)	Capacity Range	Typical Applications
Compact Type	800×2000×600	≤500kW	Rooftop PV, small commercial
Standard Type	1000×2200×800	500kW-1MW	Industrial plants, medium PV farms
Large Capacity	1200×2400×1000	1MW-2MW	Utility-scale solar farms

Customization Options

Custom Provide:

Total DC input capacity
Number of protection devices
Ambient temperature range
Cable entry requirements

Material

Aluminum alloy, stainless steel, carbon steel

IP Rating

IP54/IP55/IP65/IP66/IP67

Customization Suggestions

Customization Step	Key Parameters	Options & Adjustments	Technical Notes
Define Core Requirements	System Capacity: 10kW-1MW	+200mm width per 10-string expansion	Max. 30 strings per cabinet
	Mounting Type: Floor/Wall/DIN-rail	Reinforced brackets for wall-mount (>50kg)	Vibration-dampened for industrial use
	Protection Rating: IP54 (indoor)/IP65 (outdoor)	IP66/IP68 for marine environments	NEMA 4X equivalent available
Structural Customization	Width Expansion: Standard: 800mm	+200mm per 10 additional string inputs	Laser-cut cable entries
	Depth Adjustment: Standard: 600mm	+300mm for PCS-integrated (battery storage)	Includes cooling fan slots
	Special Add-ons	Top dust cover (sandy/desert) 300mm elevated base (flood zones)	304 stainless steel for corrosion
Compliance & Testing	Grid Standards: IEEE 1547, VDE-AR-N 4105	Customizable for local grid codes	Includes anti-islanding tests
	Environmental: -25°C to +60°C	Heating pads for Arctic climates	Humidity control (<95% RH)

Product Tags:

solar energy storage switchgear

low voltage photovoltaic switchgear

photovoltaic low voltage switchgear cabinet

Buy cheap Photovoltaic Power Station Low Voltage Switchgear Cabinet For Solar Energy Storage product

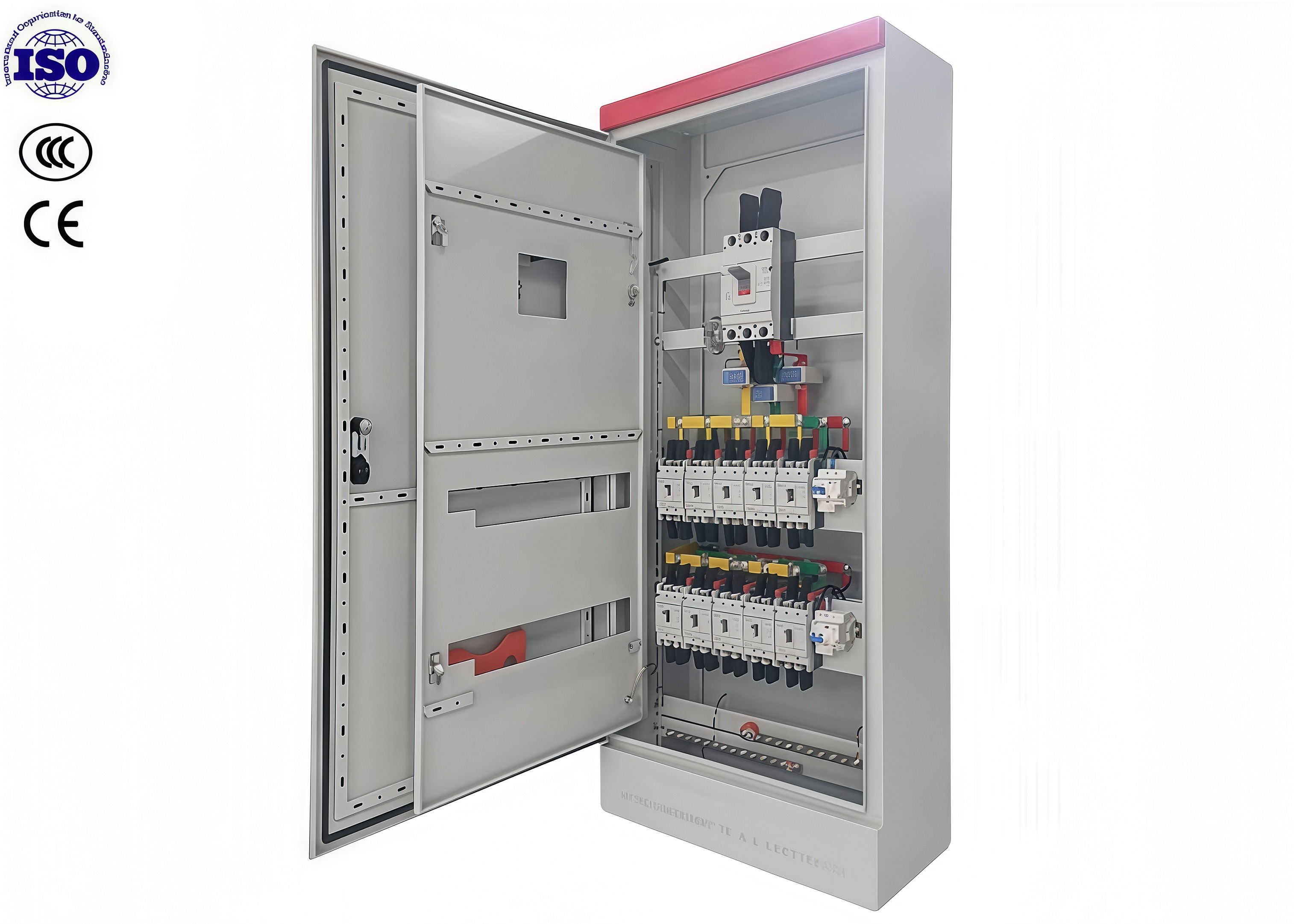

Photovoltaic Power Station Low Voltage Switchgear Cabinet For Solar Energy Storage Images
